Active and Passive Anchor Design for Tacoma Soils

Tacoma sits on a complex glacial legacy that shapes every excavation below 15 feet. The 2001 Nisqually earthquake, a magnitude 6.8 event centered near Olympia, reminded engineers across the South Sound that our dense till and outwash deposits can mask serious lateral load demands until it is nearly too late. Most projects in the downtown core or along the Foss Waterway encounter layered sequences of silty sand, hardpan, and pockets of loose fill that require very deliberate anchor design. We tie every calculation back to ASCE 7 and the current IBC because Tacoma’s seismic design category routinely pushes structures into higher detailing requirements than contractors expect. When a shoring wall faces Commencement Bay or a slope cut exposes advance outwash, we usually pair the anchor analysis with a slope stability evaluation to confirm the global factor of safety, and we rely on CPT soundings where access allows to build a continuous stratigraphic profile without sample disturbance.

An anchor in Tacoma’s glacial till is only as reliable as the geological unit you bond it into, and that unit rarely reads the textbook.

Service characteristics in Tacoma

A persistent mistake we see in Tacoma is assuming a uniform bond stress across weathered glacial till, especially in the transition zone between the Vashon advance outwash and the underlying Salmon Springs deposits. That assumption fails when the unbonded length passes through a cobble-rich layer that creates uneven load transfer, leading to creep or lock-off loss before the excavation reaches final grade. Our active anchor design always differentiates between the gravelly interbeds near the Puyallup River corridor and the finer lacustrine silts found beneath South Tacoma, adjusting the unbonded length and tendon type accordingly. For passive anchors, the critical variable is the horizontal subgrade reaction in dense till; we calibrate it with in-situ pressuremeter testing rather than relying on SPT correlations alone. The design loop includes tendon grade selection (Grade 150 or Grade 270 strand), corrosion protection class per PTI recommendations, and a sacrificial thickness calculation for aggressive groundwater that has been measured with pH as low as 5.8 near the tide flats.

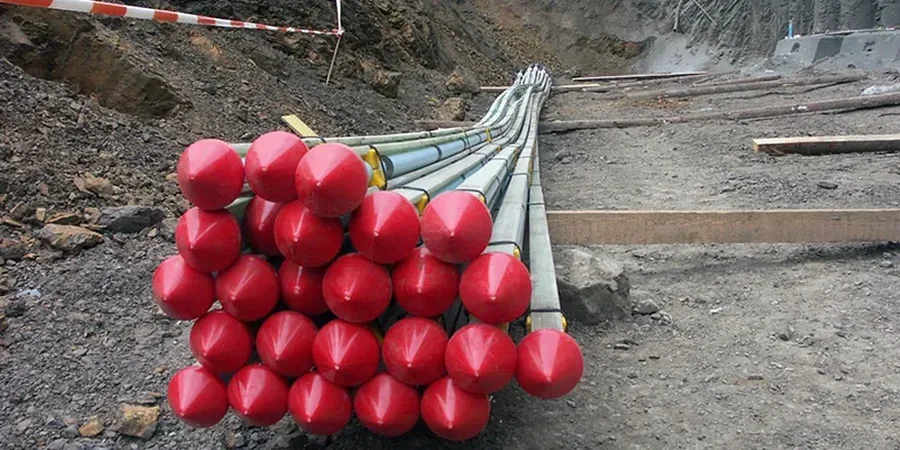

Active and Passive Anchor Design for Tacoma Soils

Parameter	Typical value
Design bond stress in dense till	80–160 psi (depending on PI and gravel content)
Unbonded length minimum	15 ft or H/5, whichever greater
Corrosion protection grade	Class I (aggressive soil/groundwater)
Lock-off load verification window	10-minute hold ±5% target load
Typical tendon type	ASTM A416 Grade 270 low-relaxation strand
Proof test acceptance criterion	Creep <1 mm over 10-minute period at 133% DL
Minimum anchor inclination	15° from horizontal for gravity-grouted anchors

Critical ground factors in Tacoma

A hollow-stem auger with a duplex drilling system is what we typically mobilize for anchor installation in Tacoma’s urban corridors, because caving sands in the transition zone between the fill and the native till will collapse a single-casing hole in minutes. The rig sits on a compacted working platform while the driller advances through the upper 10 to 20 feet of uncontrolled fill that underlies much of the downtown grid, and the moment the auger hits the hard Vashon till the penetration rate drops to less than half an inch per second, which is exactly where the bond zone needs to begin. If the hole is not kept clean and the grout is injected under low pressure, the anchor will pass a short-term test and then lose 30% of its lock-off load within a week, a scenario we have documented in monitoring records from past Tacoma projects. We specify a post-grouting program whenever the installation log shows more than two feet of open-graded gravel within the bond length, because that material acts like a drain and pulls water away from the cement hydration front.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.org

Applicable standards: ASCE 7-22 (Minimum Design Loads for Buildings and Other Structures), IBC 2021 (International Building Code, Chapter 18 Soils and Foundations), PTI DC35.1-14 (Recommendations for Prestressed Rock and Soil Anchors), ASTM A416/A416M (Low-Relaxation Seven-Wire Steel Strand), FHWA Geotechnical Engineering Circular No. 4 (Ground Anchors and Anchored Systems)

Our services

Our Tacoma anchor design package covers the full lifecycle from feasibility through lock-off and long-term monitoring, with deliverables calibrated to the local permitting process.

Active Anchor Design for Deep Excavations

We develop pre-stressed anchor layouts for soldier pile and secant pile walls in Tacoma’s downtown basin, including staged excavation analyses that account for the surcharge from adjacent historic masonry structures. Each design includes a detailed lock-off sequence, proof testing acceptance criteria, and a corrosion protection specification matched to the groundwater chemistry measured on site.

Passive Anchor and Soil Nail Design for Permanent Slopes

For permanent cuts along the SR-16 corridor or residential developments on the Tacoma bluffs, we design grouted passive anchors that mobilize resistance through deformation compatibility rather than pre-stress. The analysis couples limit equilibrium with finite element deformation modeling to ensure that service-level displacements remain below half an inch over the design life.

Quick answers

What does active and passive anchor design cost for a typical Tacoma shoring project?

For a complete design package covering a single wall line with 20 to 50 anchors, including all calculations, construction drawings, and proof test criteria, the fee typically falls between US$1,040 and US$4,110 depending on the number of anchors, the complexity of the soil profile, and whether staged excavation analysis is required. Projects that demand corrosion protection upgrades or post-grouting specifications tend to fall in the upper portion of that range.

How do you determine the bond length in Tacoma's glacial soils?

We determine the bond length by correlating three data sources: in-situ test results from the specific anchor location, laboratory shear strength from undisturbed samples of the bond zone material, and published local experience curves that have been validated on past Tacoma projects. The Vashon till often shows a distinct crust in the upper six feet where bond stress is higher, and we capture that by segmenting the bond length into sub-intervals rather than averaging the entire zone.

What corrosion protection level is required for permanent anchors in Tacoma?

The aggressive groundwater conditions near the Tacoma tide flats, combined with the presence of industrial fill in many parts of the city, mean that most permanent anchors require Class I corrosion protection per PTI recommendations. This involves a corrugated plastic sheath over the entire tendon, internal and external grout layers, and a sacrificial steel thickness calculated from the measured soil resistivity and pH. We have encountered resistivity values below 2,000 ohm-cm in several downtown borings, which triggers the most stringent protection category.
